Spring 2023

Screen Shot 2023-04-05 at 11.00.37 AM.png

Through a series of projects, students will explore lighting design and the use of light as a design element, and how to effectively communicate their project objectives through drawing and specification.

Residential Project

This project has multiple phases of a residential floor plan.  I created a reflected ceiling plan and specification book for each phase and some elevations. AutoCAD.

Bedroom

Bedroom RCP FINAL (8.5 x 11).jpg

Bathroom

Bathroom RCP FINAL-Arch A (8.5 x 11).jpg
Bathroom ELEVATION FINAL-Arch A (8.5 x 11).jpg

Living Room

Living Room RCP FINAL-Arch A (8.5 x 11).jpg

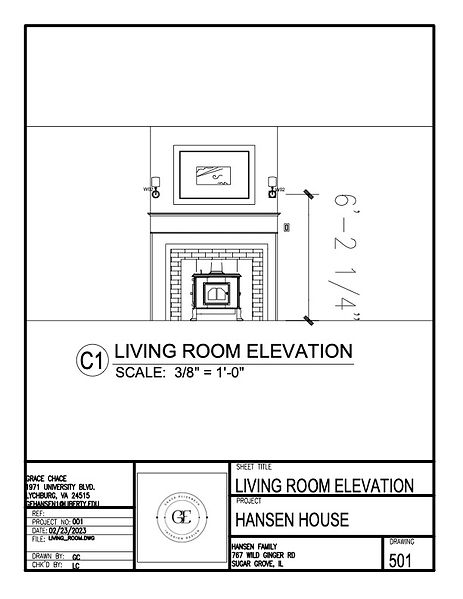

Living_Room-ELEVATION FINAL (8.5 x 11).jpg

Kitchen

KITCHEN RCP FINAL.jpg
Kitchen ELEVATION A1 FINAL-Arch A (8.5 x 11).jpg
Kitchen ELEVATION A2 FINAL-Arch A (8.5 x 11).jpg

Specifications

Commercial Project

For this project, we were tasked with redoing the lighting of an existing restaurant. Areas we addressed were all lighting for dining room and kitchen, sprinklers, emergency lighting, HVAC, and ceiling details.

Original Floor Plan


Final Reflected Ceiling Plan

Created with AutoCAD.

Presentation Poster

Created with Photoshop.

Specifications
